Compare Network Process Plugin

Avatar Permanently deleted user
August 23, 2024 12:37
Follow

General Description

The Compare Network process plugin compares whether the provided IP addresses are from the same or different network. You can also identify if the IP addresses are public or private, based on the default or customized Classless Inter-Domain Routing (CIDR) values.

Release Details

Fields

Details

Name

Compare Network

Version

3.1.0

Supported On

LogPoint v6.8.0 and later

Release Date

2020-10-30

Document Date 2020-10-30
Download Compare_Network_v3.1.0.pak
SHA256 6050faaaff34f38c467498456d6eaee5cd5464000151a360547e6b62f324dec8



Bug Fix

The following issue has been resolved:

  • Enriched fields were not highlighted in the search results.

Usage Information

Syntax:

| process compare_network(fieldname1,fieldname2)

For example:

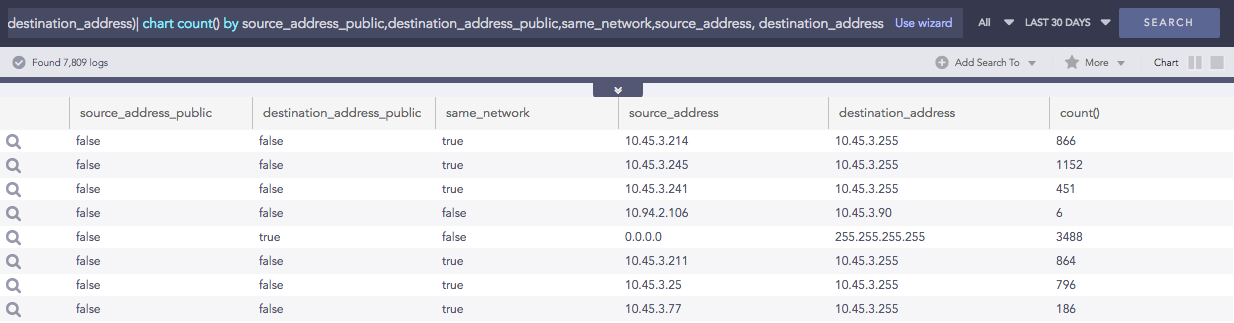

The "| process compare_network(source_address, destination_address) | chart count() by source_address_public, destination_address_public, same_network, source_address, destination_address" query compares the source_address and destination_address field values with public addresses as per the CIDR values. The application returns true if the addresses are public or else it returns false. Similarly, the query also compares whether the fields are from the same network or not.

Sample Log


Installation

Follow these steps to install the Compare Network Process Plugin v3.1.0:

  1. Download the Compare Network Process Plugin package provided in the Download section above.
  2. Install the application by importing the pak file to LogPoint under Settings >> System >> Applications.



Support

If you have any queries or require assistance, please feel free to contact our support team:

Email: servicedesk@logpoint.com
Phone: +45 7060 6100

Best regards,
