CSV Normalizer

Avatar Permanently deleted user
August 23, 2024 15:58
Follow

General Description

CSV Normalizer normalizes the CSV logs separated by delimiters: comma, space, tab, semicolon, hash, and pipe.

For LogPoint v6.7.0 or later For LogPoint v6.0.0 to v6.6.6

Release Details

Fields

Details

Name

CSVNormalizer

Version

5.1.1

Supported On

LogPoint v6.7.0 and later

Release Date

2021-04-20

Document Date 2020-04-20
Download CSVNormalizer_v5.1.1.pak
SHA256 1c956834c88477c200d701d5fd605c5ecf43557da34a4063dd335bd68c9d3791

Package Details

The application consists of the following components:

    1. Compiled Normalizer
      • CSVNormalizer

Bug Fix

An issue in the compiled normalizer CSVNormalizer where the value of the field ending with _ts was not automatically captured in the date and time format has now been resolved.

Installation

Follow these steps to install the CSVNormalizer v5.1.1 application:

  1. Download the CSVNormalizer_5.1.1.pak file from the Download section above.
  2. Install the application by importing the pak file to LogPoint under Settings >> System >> Applications.

 For more details, refer to the CSVNormalizer Manual.

Supported Devices

LogPoint supports any devices with a valid CSV log format.

Log Formats

Expected Log Format

Comma-separated

Log Sample

54,"Web, Ads/Analytics",http,OBSERVED,TCP_NC_MISS,752,logpoint\\LogPoint%20Tech%20Team

Expected Log Format

Space-separated

Log Sample

54 "Web Ads/Analytics" http OBSERVED TCP_NC_MISS 752 "logpoint\\LogPoint%20Tech%20 Team"

Expected Log Format

Hash-separated

Log Sample

54#"Web# Ads/Analytics"#http#OBSERVED#TCP_NC_MISS#752#logpoint\\LogPoint%20Tech%20Team

Expected Log Format

Semicolon-separated

Log Sample

54;"Web; Ads/Analytics";http;OBSERVED;TCP_NC_MISS;752;logpoint\\LogPoint%20Tech%20Team

Expected Log Format

Pipe-separated

Log Sample

54|"Web| Ads/Analytics"|http|OBSERVED|TCP_NC_MISS|752|logpoint\\LogPoint%20Tech%20Team

Expected Log Format

Tab-separated

Log Sample

54    "Web Ads/Analytics"    http OBSERVED TCP_NC_MISS 752 logpoint\\LogPoint%20Tech%20Team

Change in the Previous Version

Change in CSVNormalizer v5.0.0

Enrichment

The application has been updated to comply with LogPoint v6.7.0.

Release Details

Fields

Details

Name

CSVNormalizer

Version

3.0.0

Supported On

LogPoint v6.0.0 to v6.6.6

Release Date

2018-09-13

Document Date

2018-09-13

Download CSVNormalizer_3.0.0.zip
SHA256

50c12e240c8a34f224e883cbe7857d4afcef975cf6813d9fddff7315f0436eb3



Installation

Follow these steps to install the CSVNormalizer v3.0.0 application:

  1. Download the CSVNormalizer_3.0.0.zip  file from the Download section above.
  2. Extract the zip file to obtain the CSVNormalizer_3.0.0.pak  file.
  3. Go to Settings >> System >> Applications.
  4. Click Import and a pop-up panel appear.
  5. Browse for the location of the CSVNormalizer v3.0.0 file downloaded earlier.
  6. Click Upload.
  7. After installing the application, you can view the CSVNormalizer 3.0.0 entry under Settings >> System >> Plugins.
  8. Go to Settings >> System >> Plugins.
  9. Click Manage to configure the normalizers.

Please refer to the CSVNormalizer Manual for more details.

Configuration of Sources

Expected Log Formats

  • Comma-separated
  • Space-separated
  • Hash-separated
  • Semicolon-separated
  • Pipe-separated
  • Tab-separated

Log Samples

54,"Web, Ads/Analytics",http,OBSERVED,TCP_NC_MISS,752,logpoint\\LogPoint%20Tech%20Team


54 "Web Ads/Analytics" http OBSERVED TCP_NC_MISS 752 "logpoint\\LogPoint%20Tech%20 Team"


54#"Web# Ads/Analytics"#http#OBSERVED#TCP_NC_MISS#752#logpoint\\LogPoint%20Tech%20Team


54;"Web; Ads/Analytics";http;OBSERVED;TCP_NC_MISS;752;logpoint\\LogPoint%20Tech%20Team


54|"Web| Ads/Analytics"|http|OBSERVED|TCP_NC_MISS|752|logpoint\\LogPoint%20Tech%20Team


54    "Web Ads/Analytics"    http OBSERVED TCP_NC_MISS 752 logpoint\\LogPoint%20Tech%20Team

To export data to LogPoint, use the Syslog collector on port 514 on the LogPoint server.

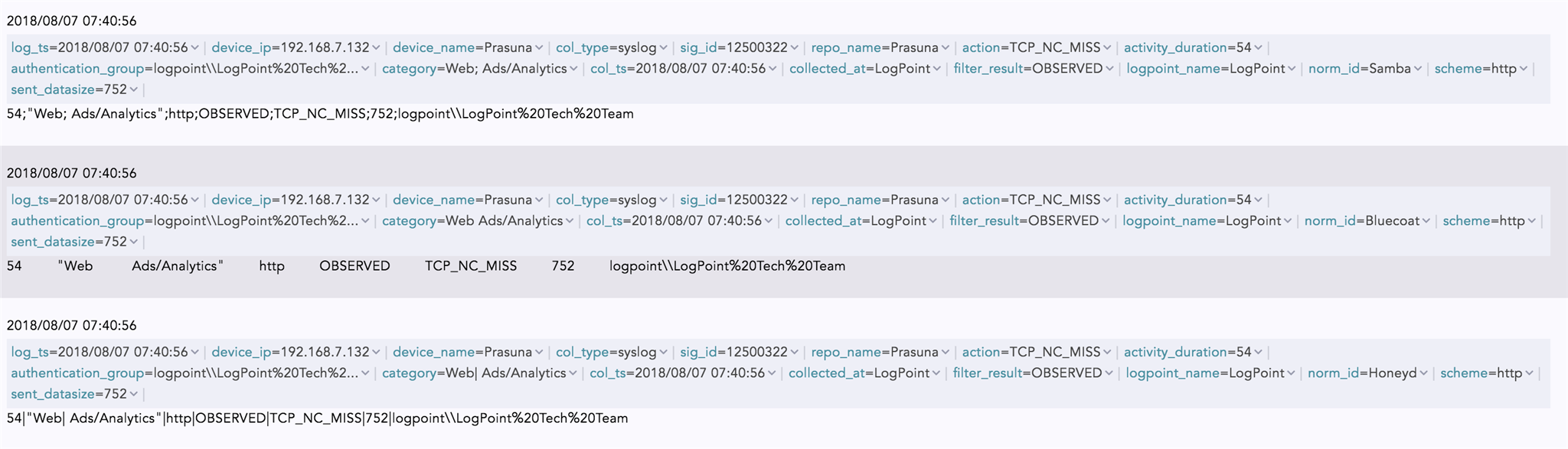

Sample Logs


Documentation

You can obtain the CSVNormalizer Manual from the Download section above.



Support

If you have any queries or require assistance, please feel free to contact our support team:

Email: servicedesk@logpoint.com
Phone: +45 7060 6100
